Plate Amp Entry Series
The Plate Amp Entry Series is a cost-effective yet powerful plate amplifier, designed to deliver precise
bass and immersive sound. It's perfect for enhancing home theaters or music systems.
Feature :
* Reduced cost: More affordable while still offering outstanding audio performance
* High Efficiency Power supply: with active power Factor Correction (PFC) design
* DSP: Embedded DSP with customizable presets for high-quality speaker tuning options.

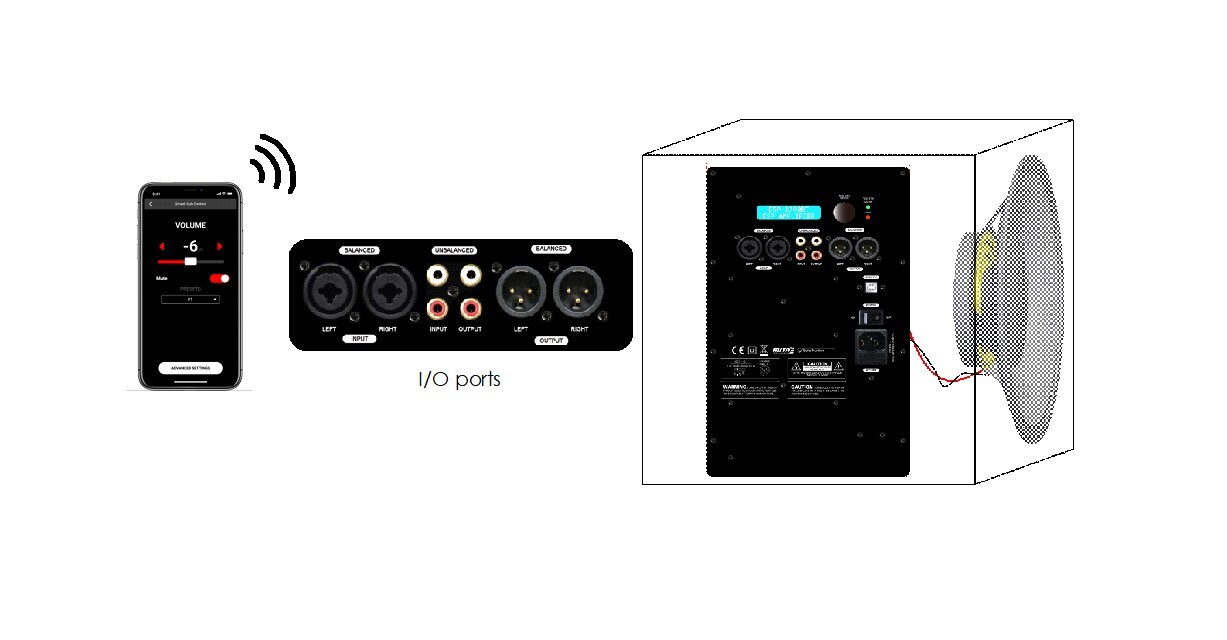

* Bluetooth connection: BLE connectivity for APP Integration
* App Integration: Custom app design services provided
* Auto-Standby Mode: activates after 20min without signal to reduce power consumption
* Application : Gaming Audio Setups, DIY Speaker Projects, Home Theatres, Hi-Fi Music Systems
Amplifier Specifications:
Model | DSP-250BT | DSP-500BT | DSP-1200BT |
| Channel | 1-Channel | 1-Channel | 1-Channel |
| Power Output | 1 x 250Wrms @4ohm | 1 x 500Wrms @4ohm | 1 x 1200Wrms @4ohm |
| Input Sensitivity (RCA and Balanced) | 316mVrms (-10dBV) / 631mVrms (-4dBV) | ||
| Input Impedance | RCA analog input: 10kΩ Balanced analog input: 20kΩ | ||
| THD+N Ratio | < 1% (@ 100Hz, Max Power) | ||
| Frequency Response | 10 ~ 500Hz ± 1dB | ||
| Signal to Noise Ratio | ≥ 90dB (A-weighted, Max Power) | ||
| Amplifier Topology | High Efficiency Class-D amplifier | ||
| Protection Circuits | Thermal, over-current, over-voltage, short circuit protection | ||
| Power Supply | Universal mains(100~240V AC50/60Hz), SMPS with Power Factor Correction (PFC) | ||
| Dimensions (W x H x D) | 190 x 280 x 60 (mm) 7.5 x 11.0 x 2.4 (in) | 190 x 280 x 60 (mm) 7.5 x 11 x 2.4 (in) | 190 x 310 x 60 (mm) 7.5 x 12.2 x 2.4 (in) |
| Weight | 1.6 Kg(3.5lbs) | 1.6 Kg(3.5lbs) | 2.2 Kg(4.9lbs) |
➤ CORE TECHNOLOGY -
At Formosa Audiomate Ltd., it is transforming the audio industry with innovative technology and exceptional quality. Its expertise includes high-power class D amplifiers, PFC, DSP, Dante applications, GaN Mosfet, and switching power supplies. Features include Web GUI/PC control, PoE technology, and real-time monitoring via USB or Ethernet. Remote management and OTA firmware updates are also supported. It offers features like remote monitoring, wireless control, and noise reduction.

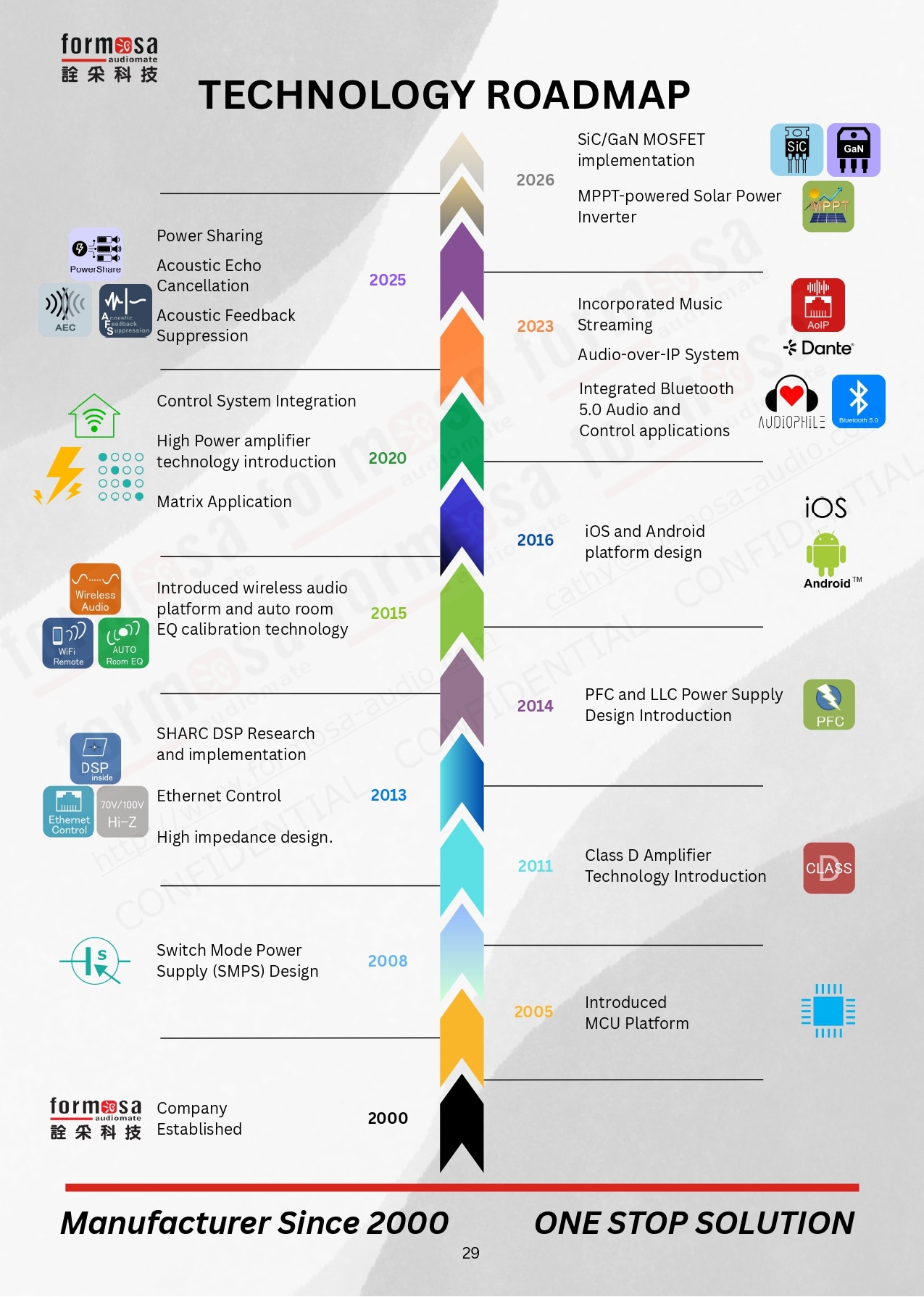

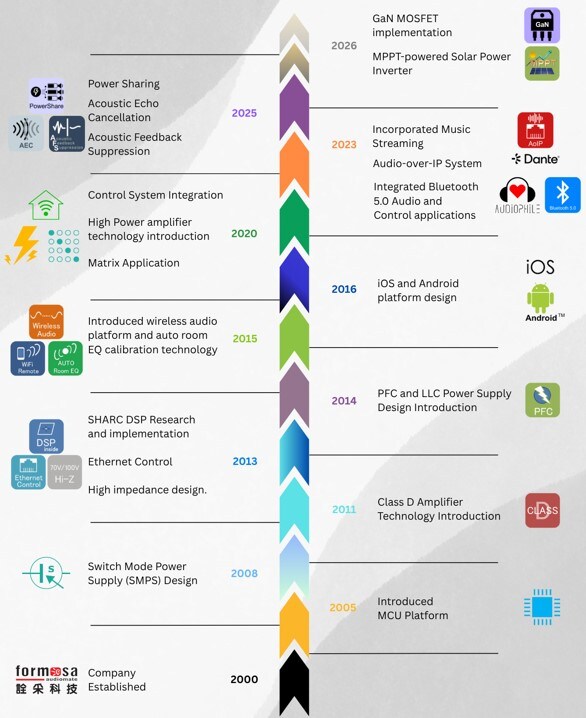

➤ ROADMAP -
