Hybrid Compact series_MT-2120E / MT-4120E /MT-4120EA

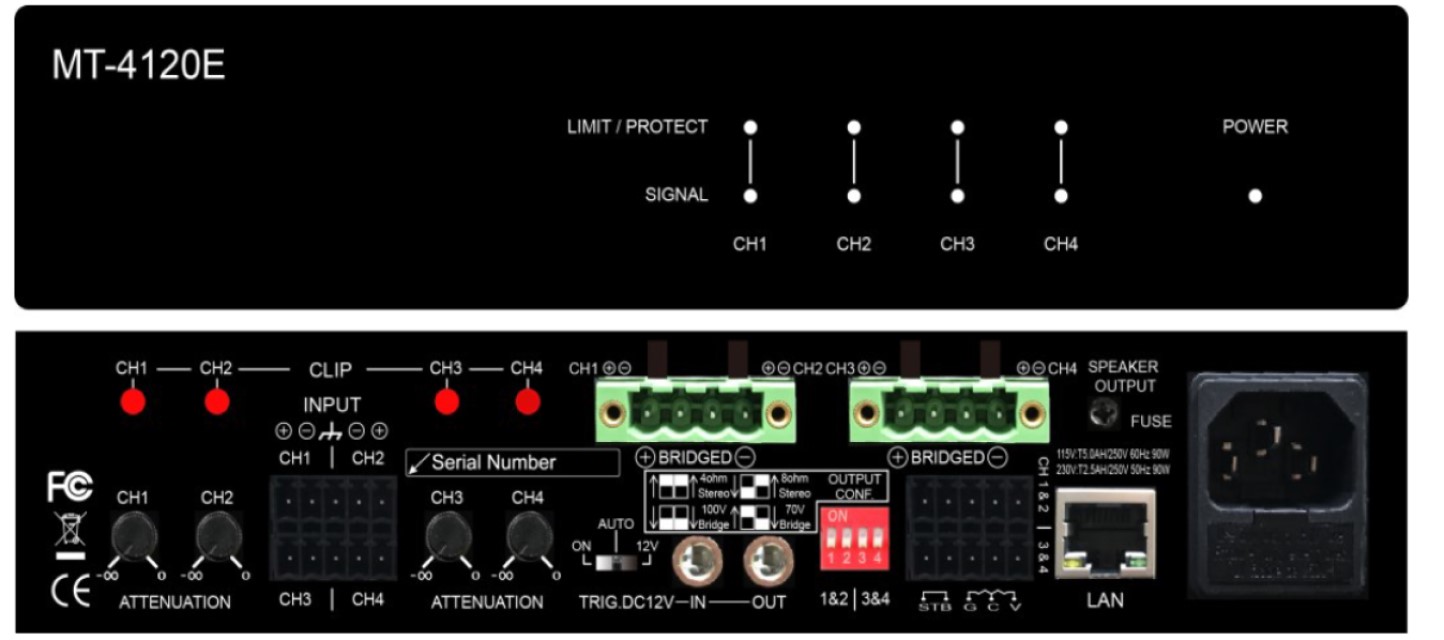

MT-2120E / MT-4120E /MT-4120EA

Hybrid Compact Series

The Hybrid Compact Series features half-rack compact amplifiers, perfect for space-efficient installations across various applications.

With built-in matrix DSP and power-sharing technology, these amplifiers offer versatility and ease of installation.


Feature -


* Dante Audio-Over-IP: Cutting-edge, low-latency audio-over-IP technology

* Half Space 1U compact Design: High density, requiring less space

* High Efficiency Power supply: with active power Factor Correction (PFC) design

* Multi-impedance Application: 4Ω/70V/100V hybrid
* Flexible Matrix: Simplifies the installation process
* Network Control: Managed through TCP/IP and Telnet protocols.
* Application: Home Audio System, Small-scale Locations, Classrooms, Bars and Restaurants, Portable AV setups




Web UI

(Customisable design upon reqeust.)


Amplifier Specifications:

ModelMT-2120EMT-4120EMT-4120EA
Channel2-Channel4-Channel4-Channel
DanteN/AN/A4 x 4 Ultimo Dante
Power Output2 x 120Wrms @4ohm4 x 120Wrms @4ohm4 x 120Wrms @4ohm
Power output
(Bridge)
1 x 240Wrms @8ohm
1 x 240Wrms @70V/100V
2 x 240Wrms @8ohm
2 x 240Wrms @70V/100V
2 x 240Wrms @8ohm
2 x 240Wrms @70V/100V
Input Sensitivity1.23Vrms(+4dBu), Max Power
Input ImpedanceRCA analog input:10k ohm
THD+N Ratio< 1% (@ 1kHz, Max Power)
Frequency Response20 ~ 20kHz ± 1dB
Signal to Noise Ratio≥ 90dB

(A-weighted, Max Power)

Amplifier TopologyHigh Efficiency Class-D amplifier
Protection CircuitsThermal, over-current, over-voltage, short circuit protection

Dimensions

(W x H x D)

215 x 44 x 245 (mm)
8.46 x 1.73 x 9.64 (in)
Weight2.2 Kg (4.8lbs)




➤ CORE TECHNOLOGY -

At Formosa Audiomate Ltd., it is transforming the audio industry with innovative technology and exceptional quality. Its expertise includes high-power class D amplifiers, PFC, DSP, Dante applications, GaN Mosfet, and switching power supplies. Features include Web GUI/PC control, PoE technology, and real-time monitoring via USB or Ethernet. Remote management and OTA firmware updates are also supported. It offers features like remote monitoring, wireless control, and noise reduction.

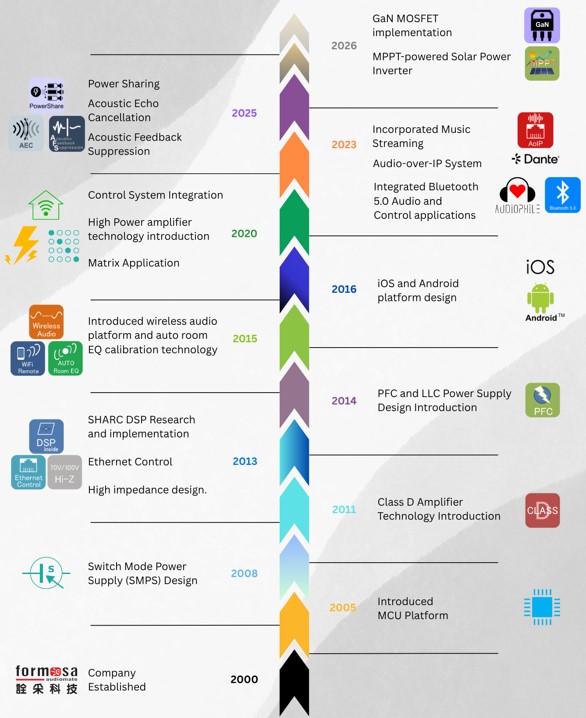

➤ ROADMAP -
